FOTIS ZAPANTIOTIS ASSOSIATED ARCHITECTS - ALFA VAGIA

LOCATION YEAR TYPE STATUS SIZE SERIFOS 2022 RESIDENTIAL ASSIGNMENT 500sqm GREECE

HEAD ARCHITECT DESIGN TEAM CONSTRUCTION PHOTOGRAPHER ZAPANTIOTIS FOTIS ZAPANTIOTIS FOTIS CONCEPT CONSTRUCTION SFAKIANAKIS GIORGOS AGAPAKI MARIA APOSTOLAKIS - STAMATELOS

The study concerns the completion of three distinct vacation residences in an existing complex located at Vagia Beach in Serifos.

The intervention revolved around the reinstatement of the relationship between the buildings and the natural relief, as they had initially been constructed at a higher level than permitted, in order to avoid the high water table in the area. Consequently, the ground floor remained cut off from the surrounding environment, while the buildings appeared starkly detached and exposed in relation to the natural terrain.

The design’s main objective was to mitigate the height difference and properly manage the large embankments that would cover the exposed underground level, without leaving an imprint that would harshly interfere with the natural landscape (avoidance of a distinct perimeter base).

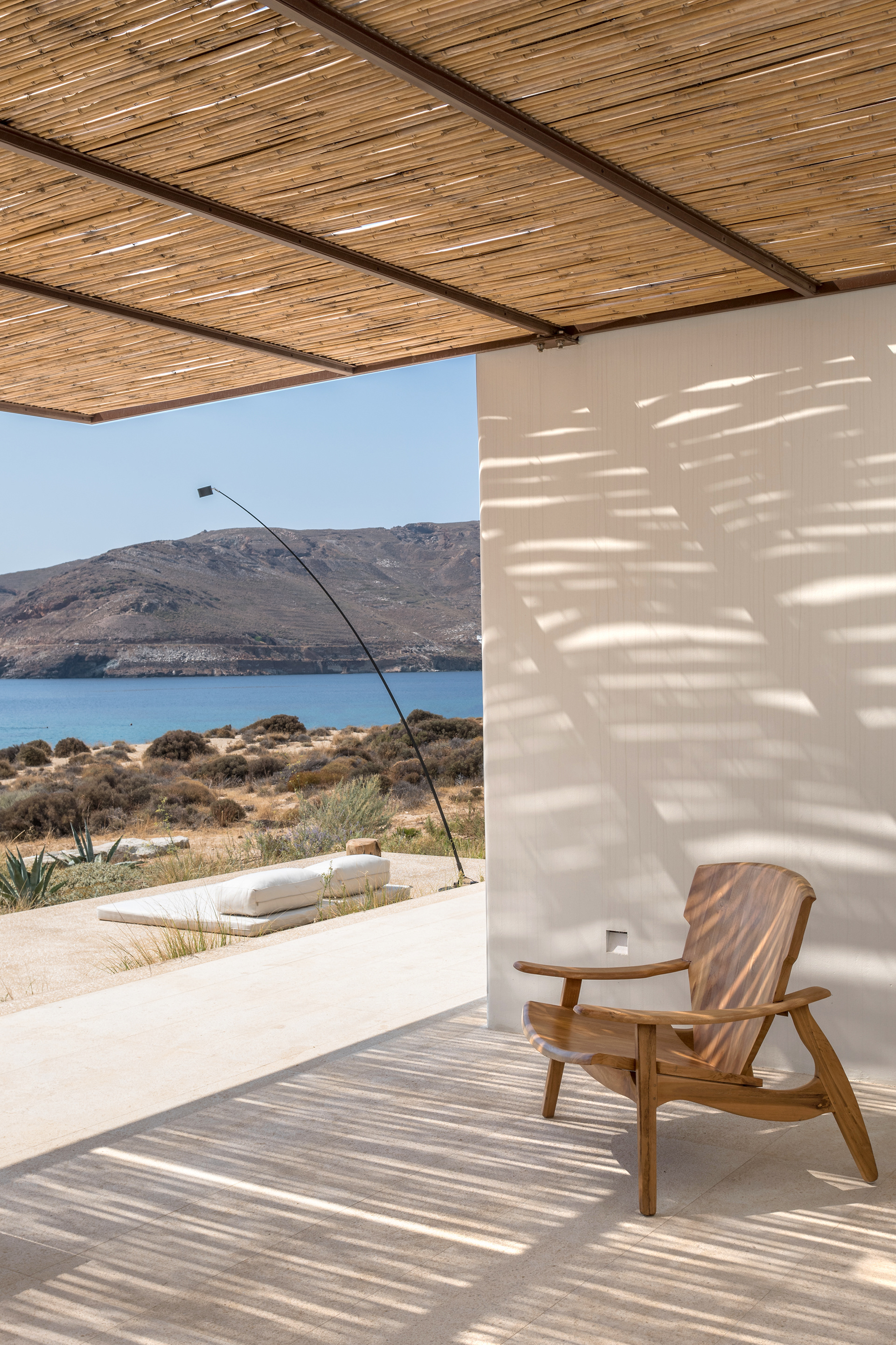

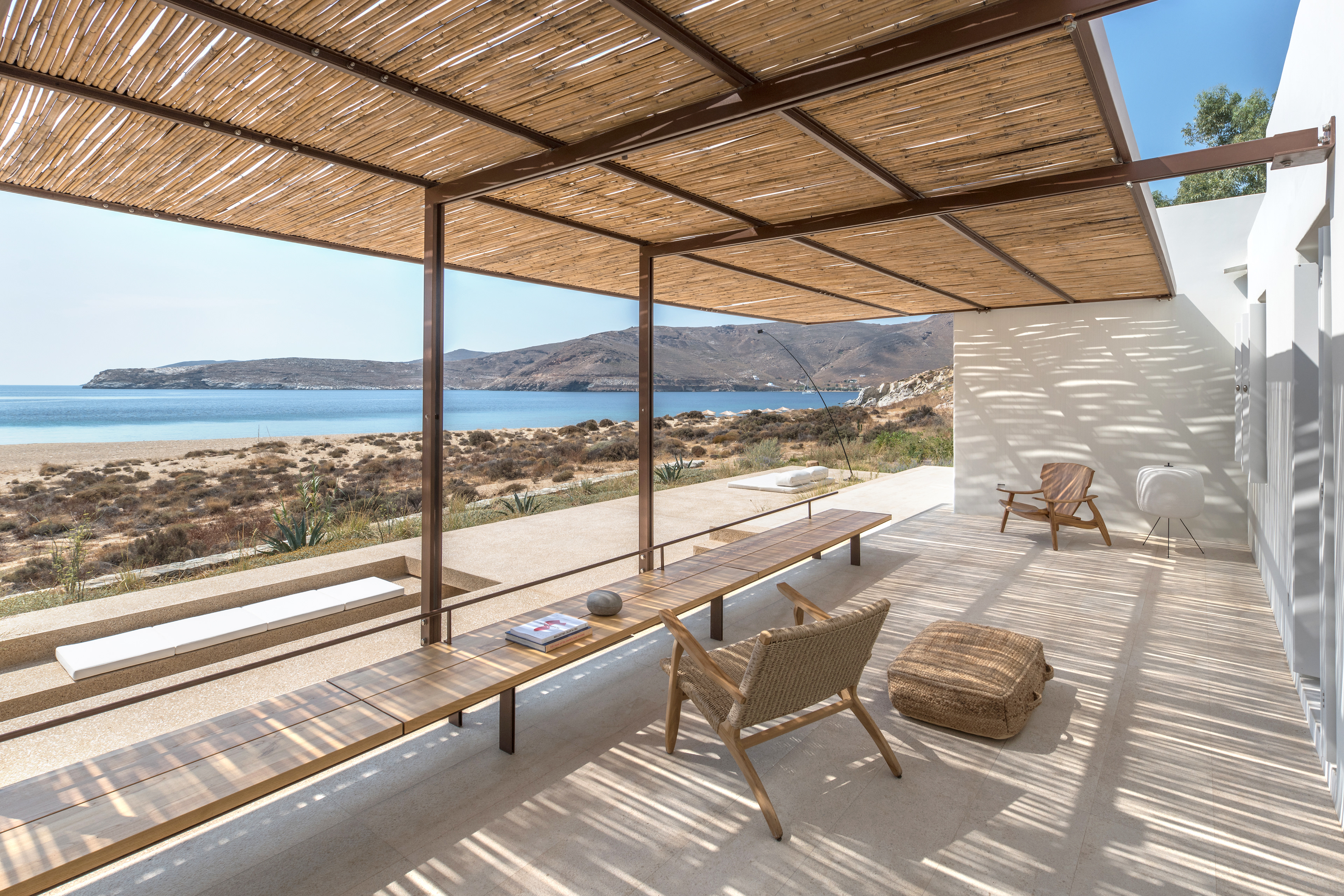

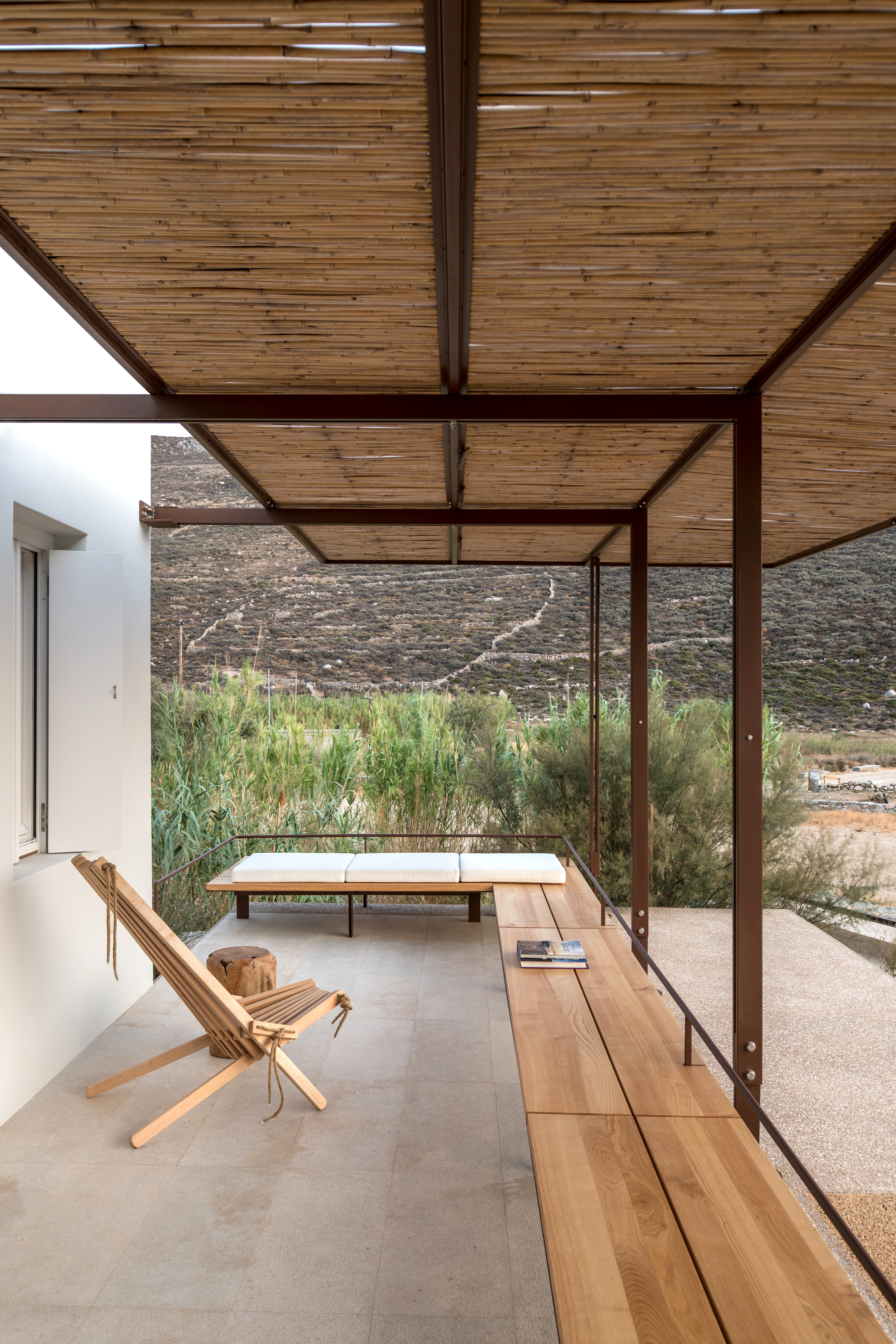

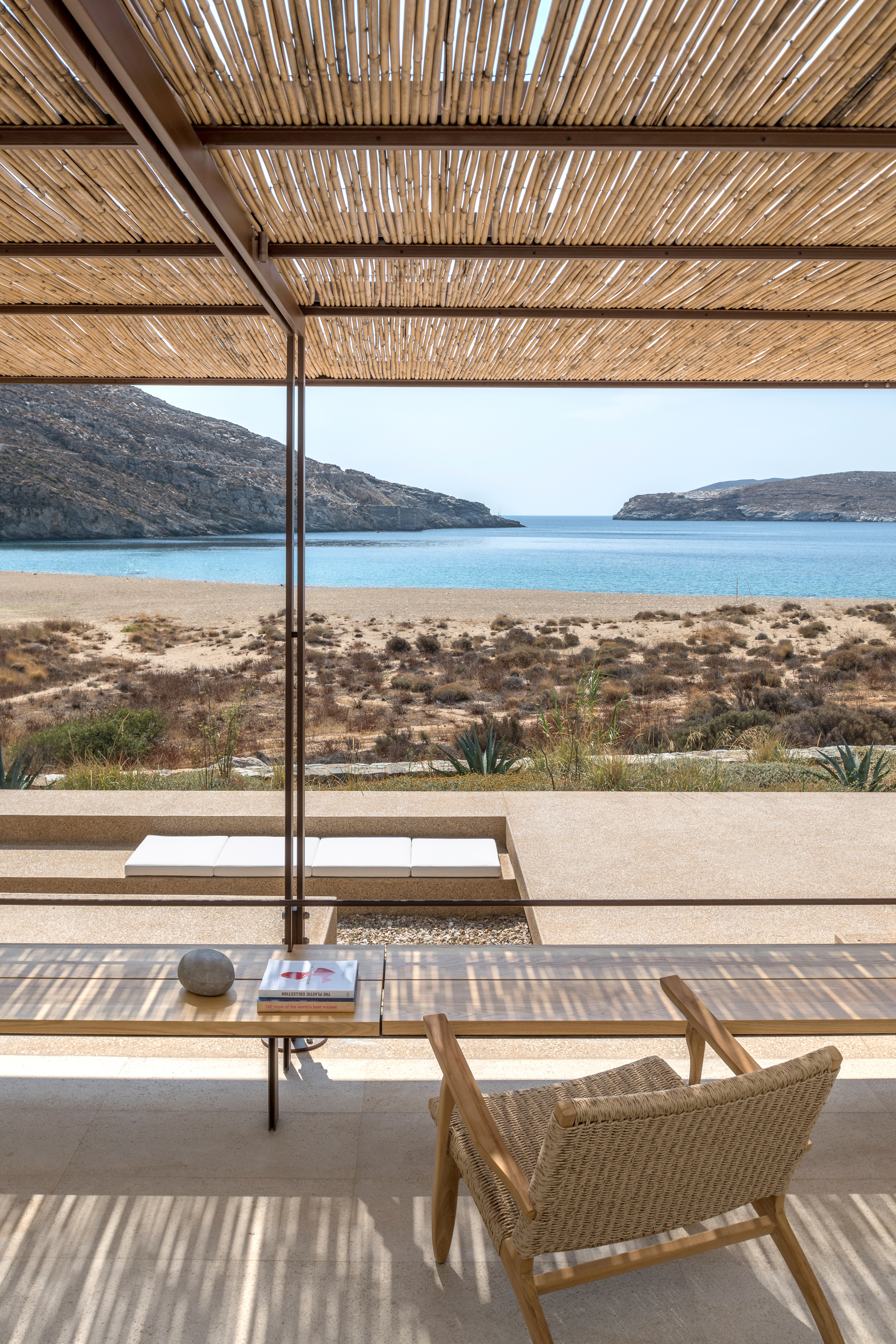

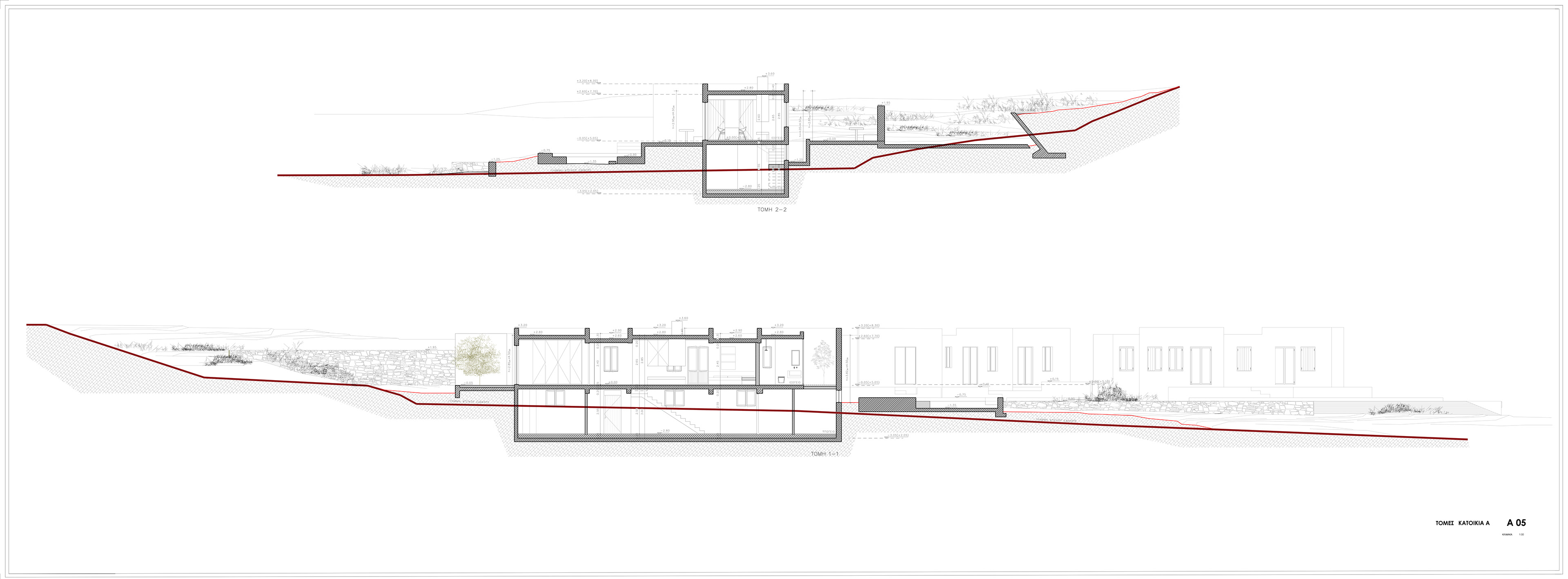

The considerable height difference was scaled towards the beach through two successive lowerings, aiming to improve the view of the complex from the sea. The ground level of each residence responds a first, same-level, shaded terrace, before ending at a lower-level wider terrace, oriented towards the West and the view.

Photo courtesy © GIORGOS SFAKIANAKIS

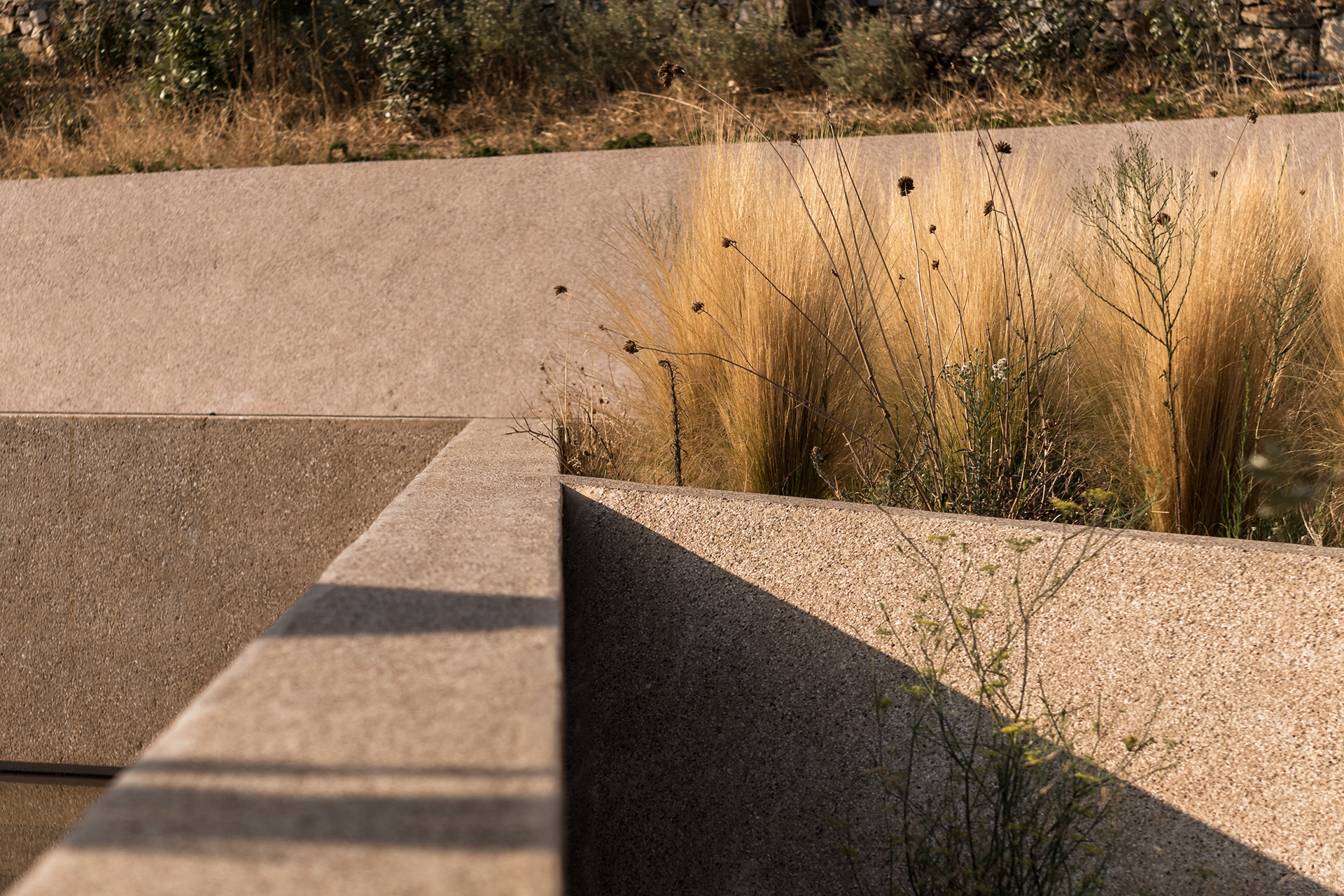

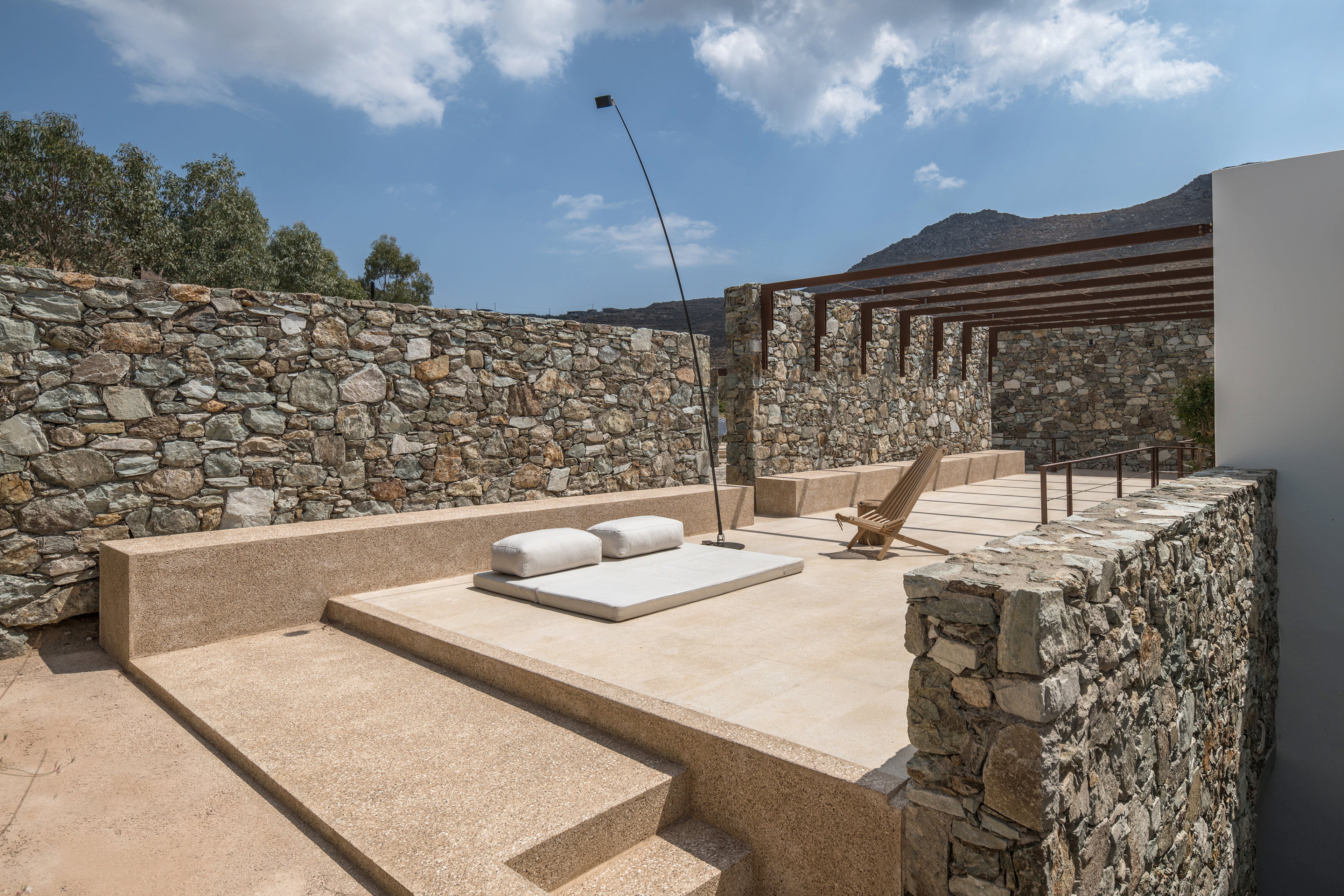

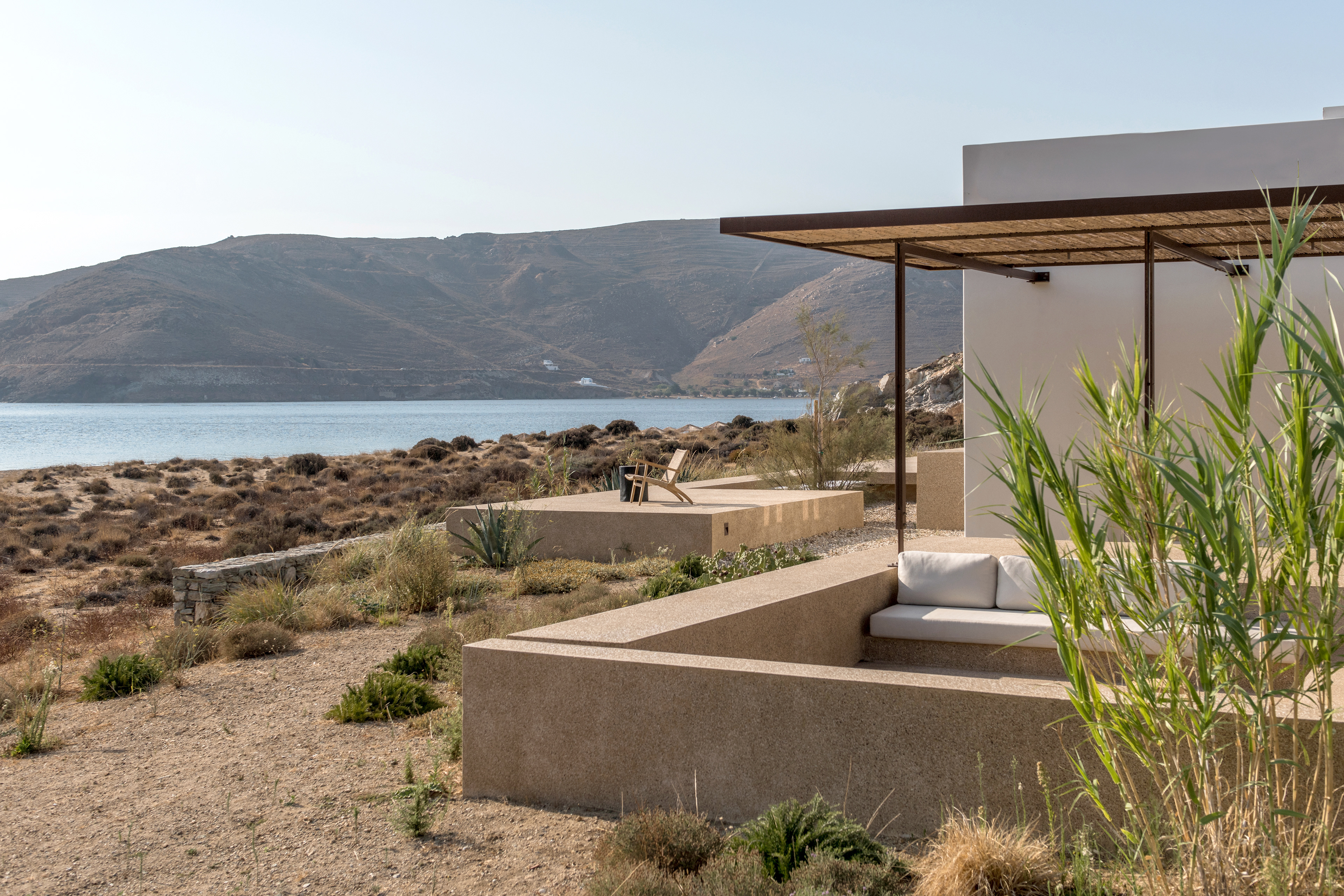

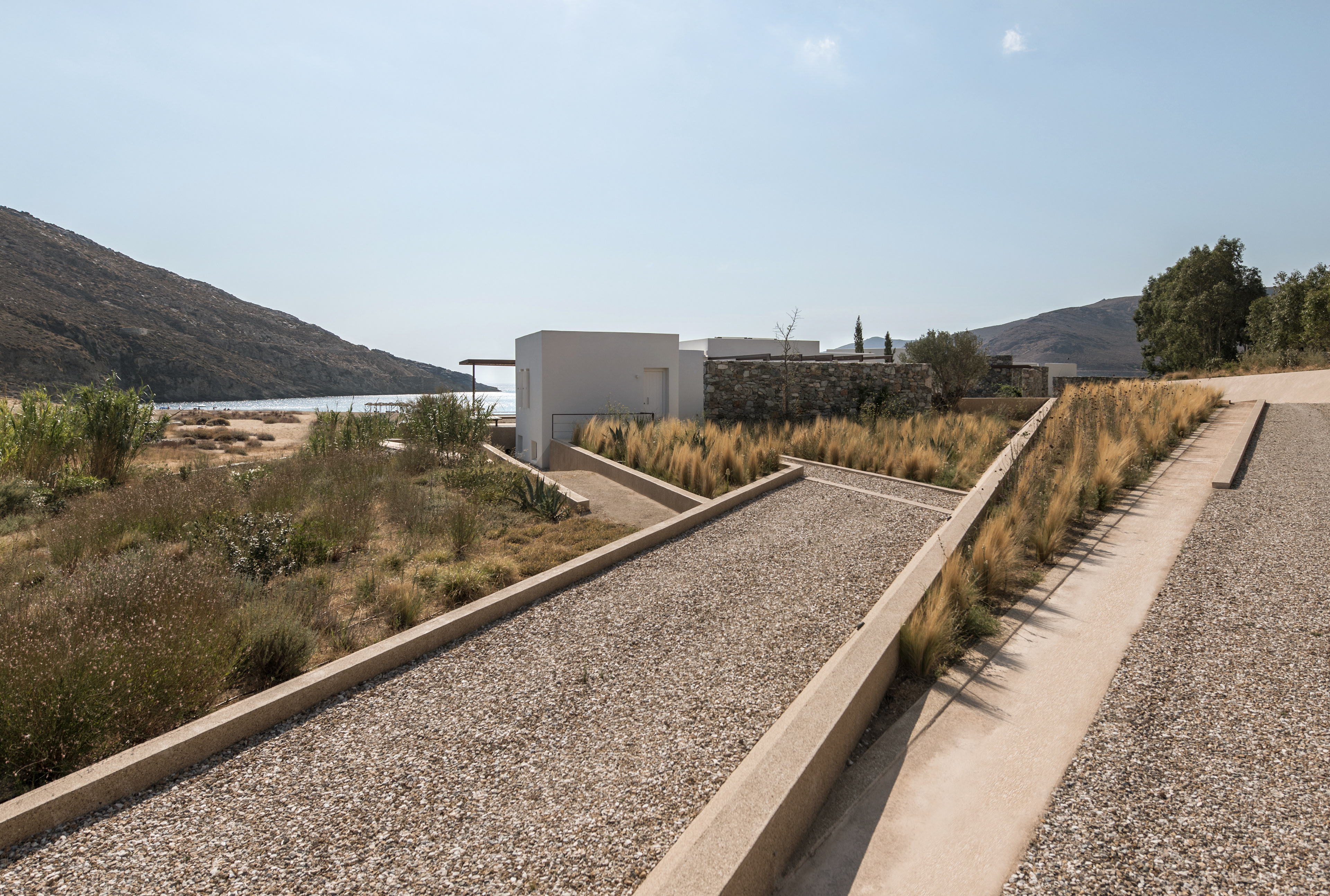

The western terraces either function as retaining walls, in the form of solid, cube-shaped formations, or lead, as a slab, to the dry stone retaining walls surrounding the whole composition. The use of bush hammered sand-colored concrete for the terraces gives the sense of a solid, natural material optimizing their integration into the natural landscape.

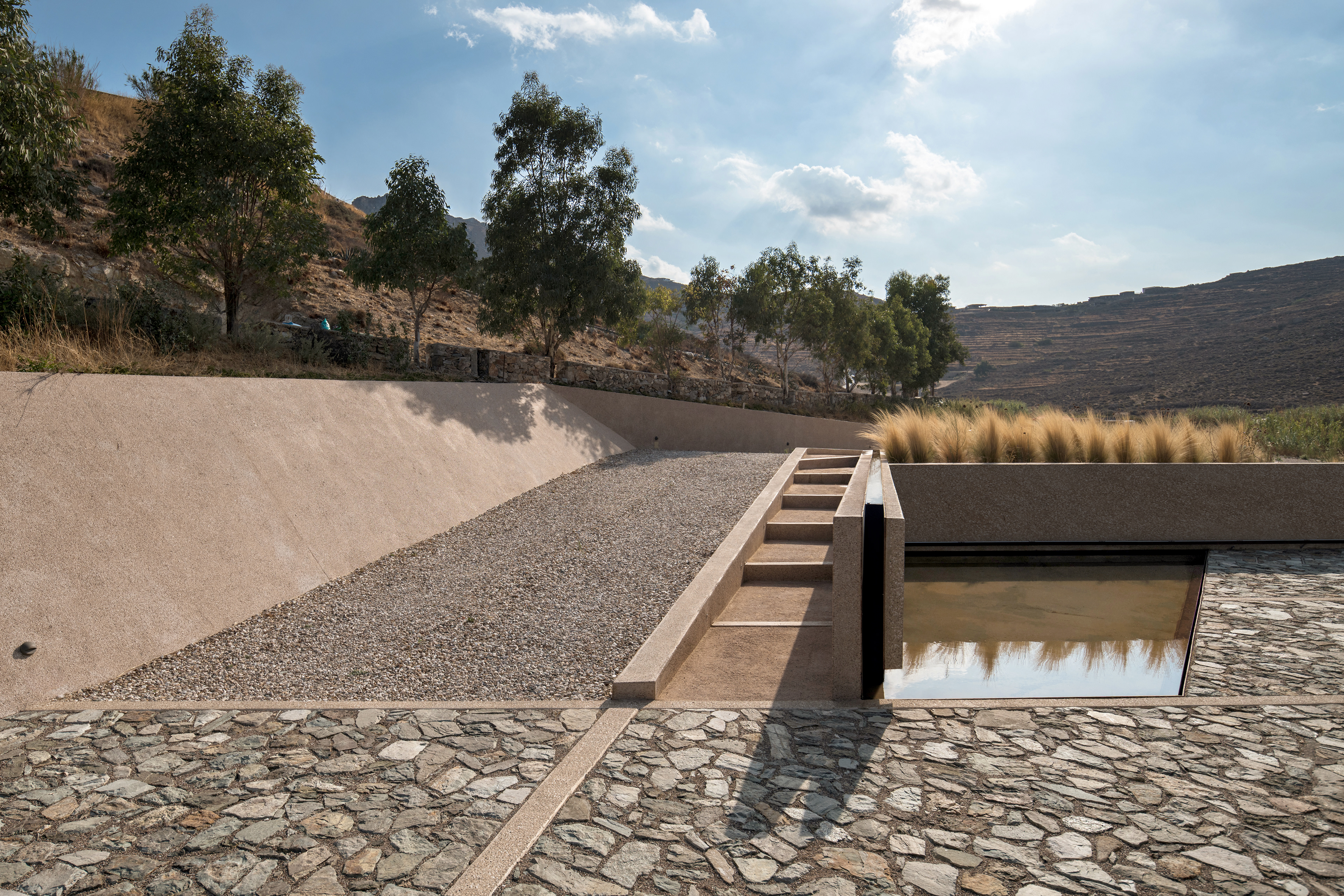

Taking advantage of the slope at the eastern boundary of the plot, the ground’s natural inclination is restored through retaining walls, with the adjacent hill level meeting the entrance level of the houses and allowing the terrain to evenly accommodate the complex.

Photo courtesy © GIORGOS SFAKIANAKIS

The intervention then focused on the creation of intermediate spaces, the inner patios, elements that were absent from the initial study, but are considered necessary for the proper function and use of summer residences.

Filtering public movement towards the interior, this transitional space provides the residences with an additional outdoor place, an introspective patio that is vital for the users’ social life, which is a typical aspect of Cycladic architecture. Each residence thus acquires its own enclosure, with inner patios, intermediate spaces and open terraces aligned with the view.

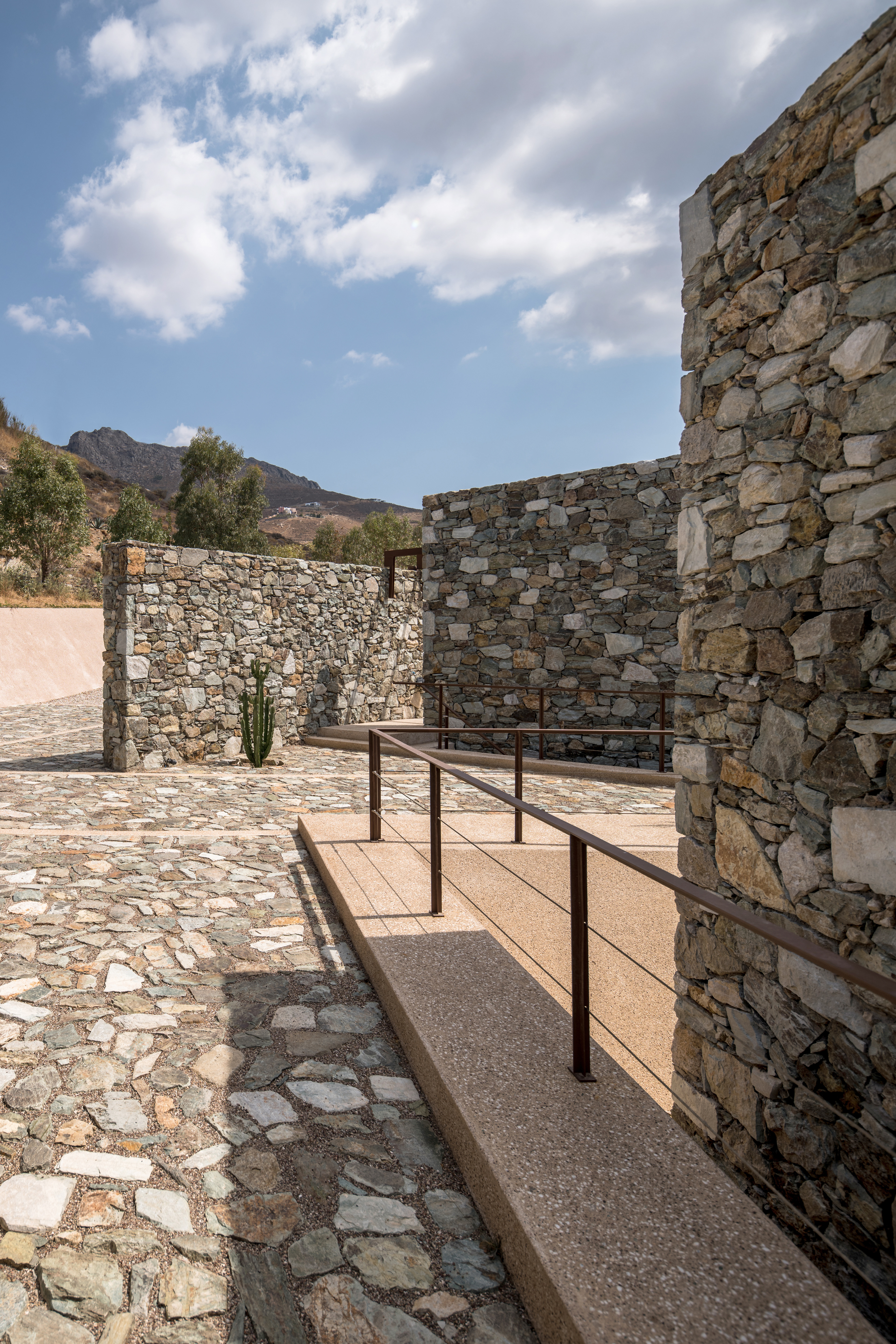

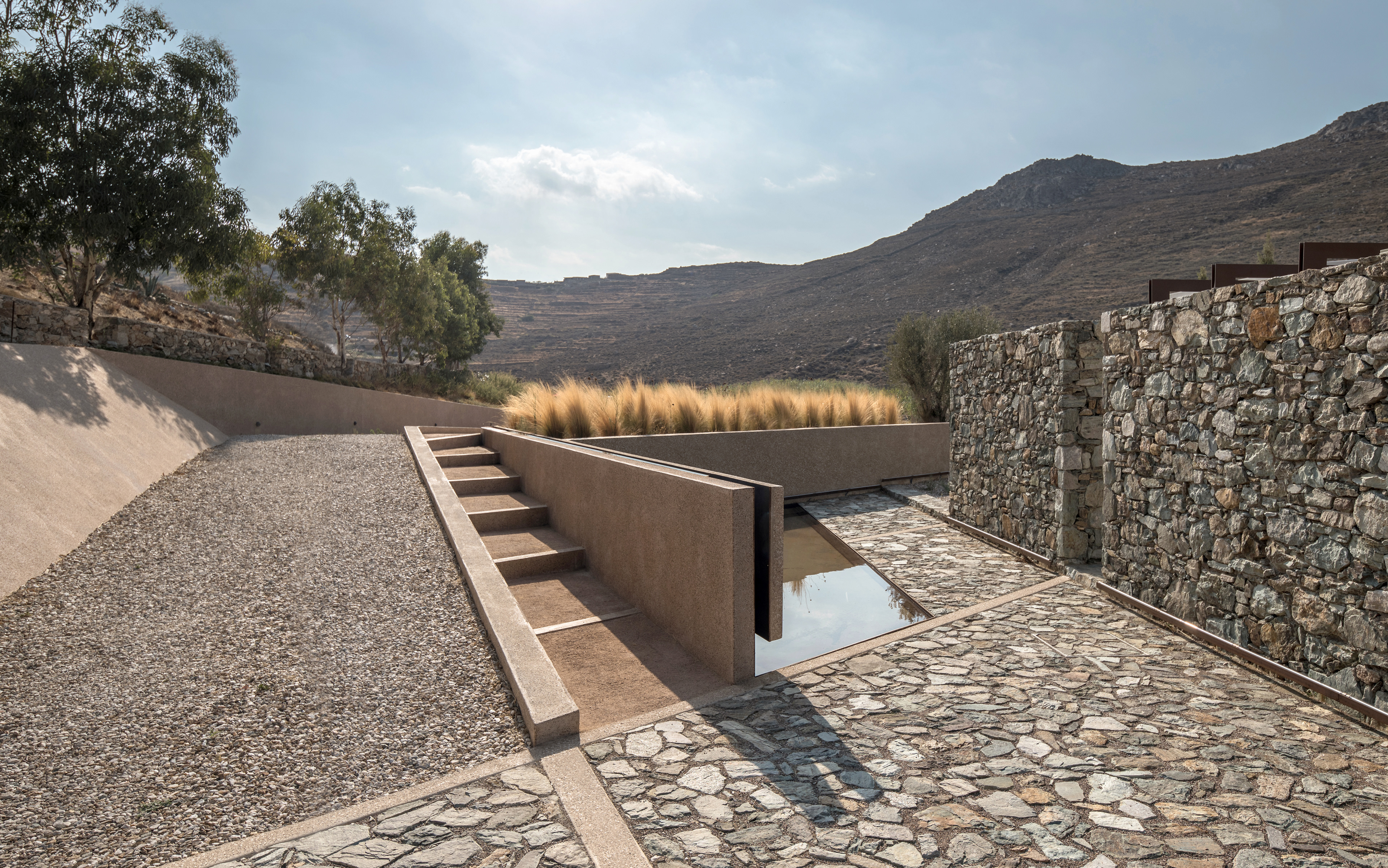

The element of “linear wall” forms the patios. The linear walls are constructed from local dry stone, following the design axes of the three residences, to reinstate the notion of a “hard boundary” that was absent from the initial design. The stone wall boundary, with its completes and voids, is articulated at the rear part of the residences, functioning both as protection against the strong winds of the area, but also as a primary filter separating the public from the private space of the houses, thus ensuring the necessary privacy for the user.

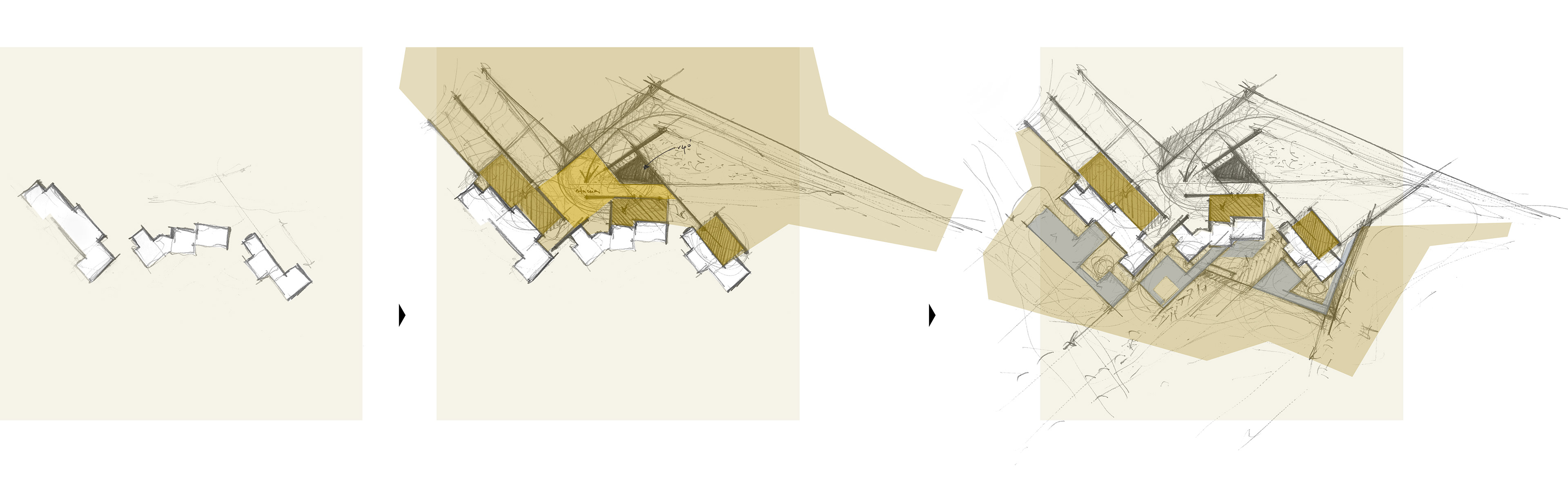

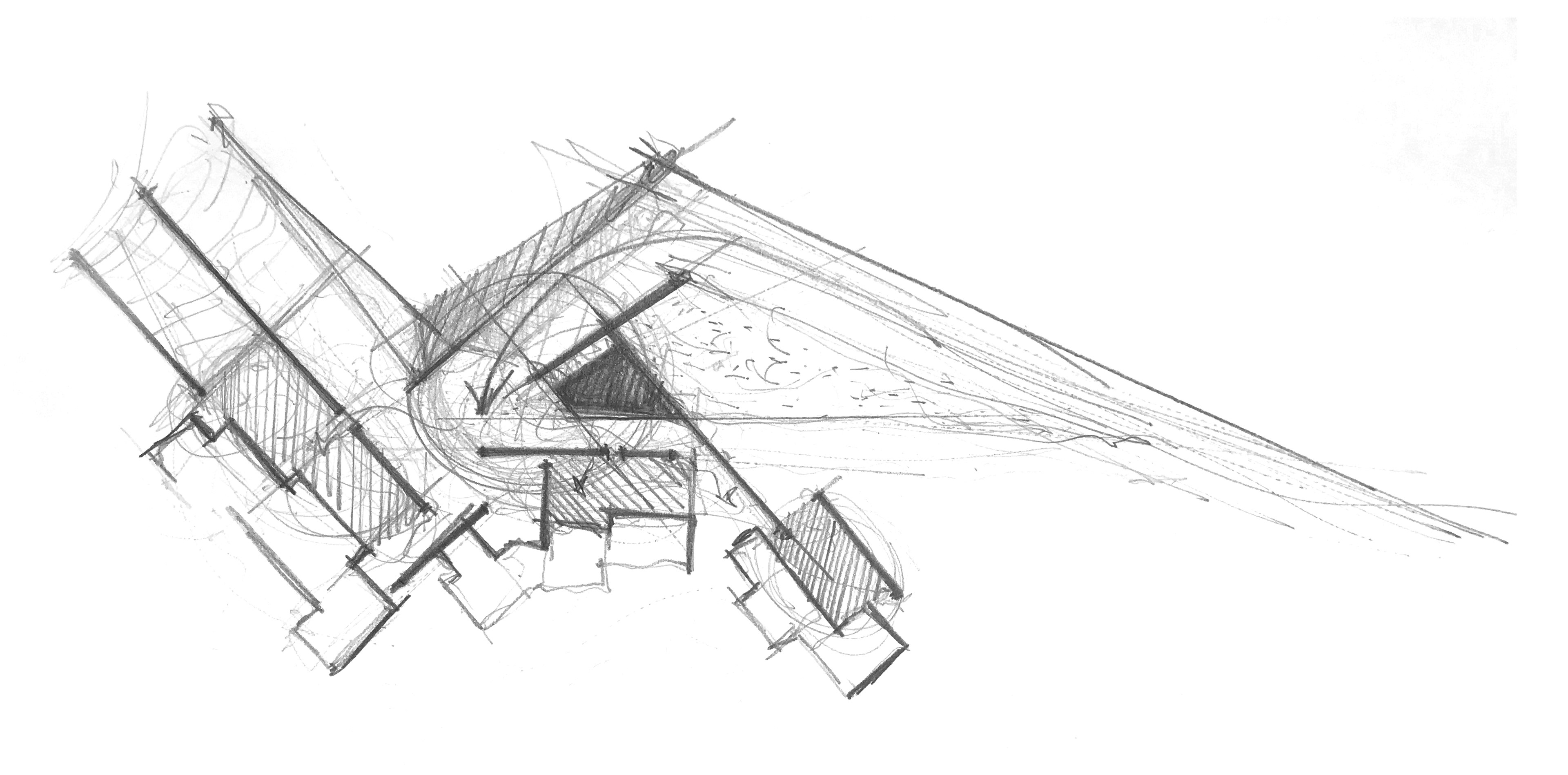

The broken line of stone walls connects the three residences, giving the impression of a single building complex, rather than three distinct adjacent buildings.

Photo courtesy © GIORGOS SFAKIANAKIS

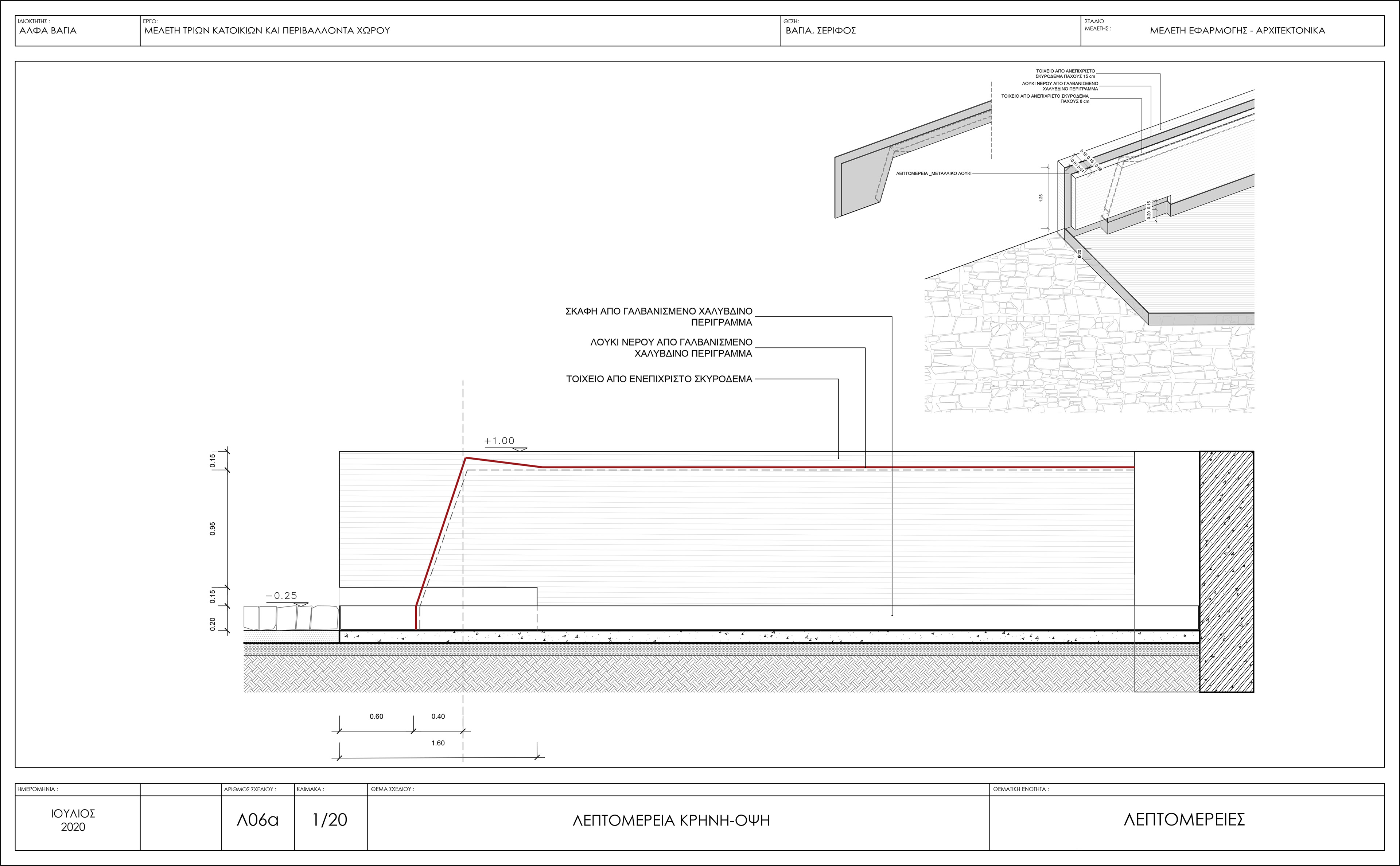

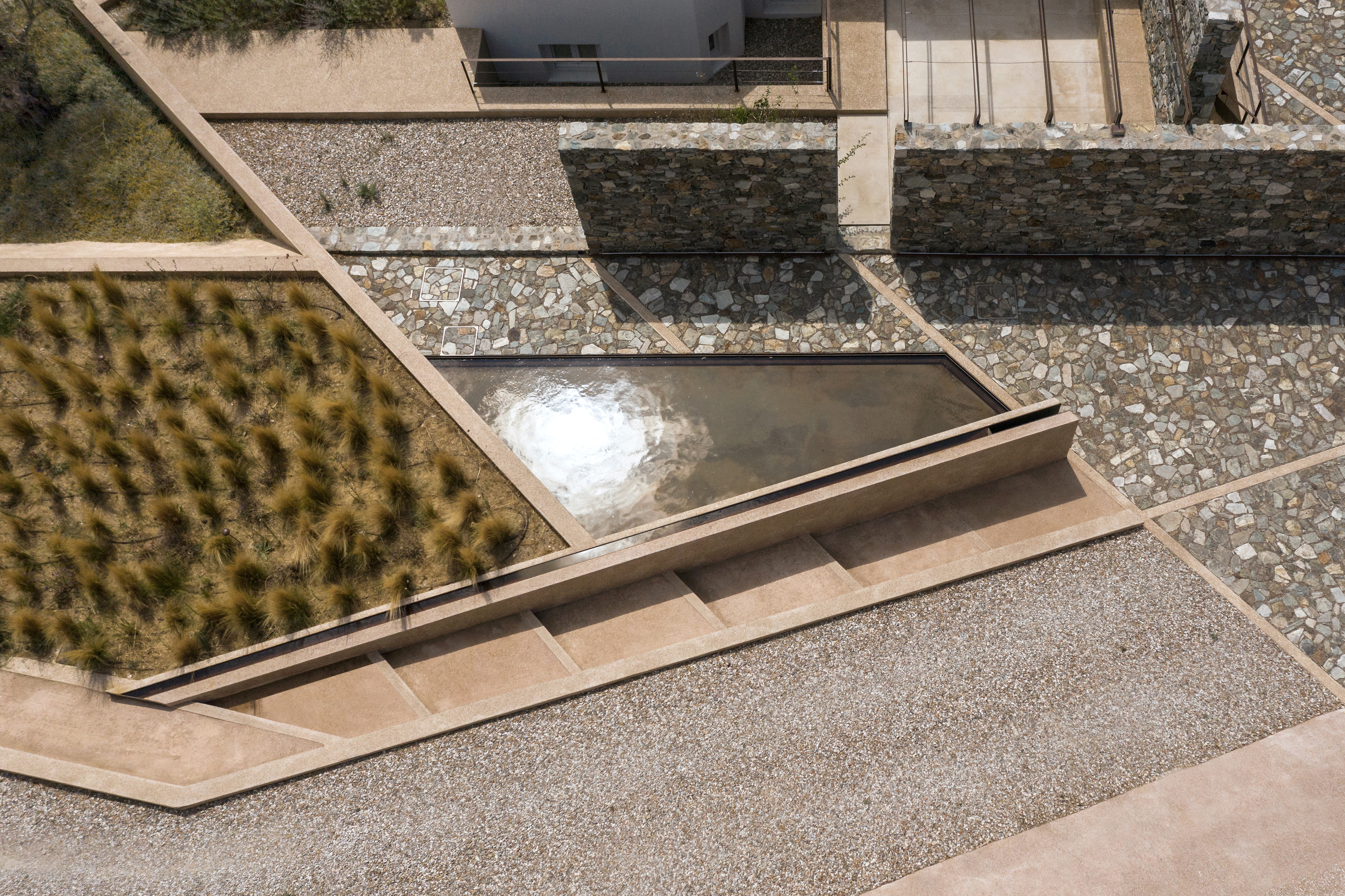

The element of water through a fountain is used at the center of a common courtyard that becomes a reference point for the complex. Moving from the central entrance slightly upwards within the surrounding area, the walker gradually acquires a view of the space, intensifying the element of surprise, to end up at this lower-level courtyard placed centrally in the composition, where all movement initiates.

The axes of movement, linear walls, planting, water elements and seating areas become the primary compositional elements, dynamically contrasting the new additions with the pre-existing building shells.

The materials, local stone, concrete colored by red sand from the excavations and metal constructions, integrate the complex into the surrounding environment and serve as a reference to Serifos’ mining tradition.

Photo courtesy © GIORGOS SFAKIANAKIS

ΜΕΤΑΛΛΙΚΕΣ ΚΑΤΑΣΚΕΥΕΣ : QOOP // ΞΥΛΟΥΡΓΙΚΑ : ORIGINAL WOOD CREATIONS ΜΙΧΑΛΗΣ ΤΣΙΠΛΑΚΙΔΗΣ // ΦΩΤΙΣΜΟΣ : SITE SPECIFIC _ NEA POLIS // ΔΑΠΕΔΑ_ΕΙΔΙΚΕΣ ΚΑΤΑΣΚΕΥΕΣ: KEMERIDIS CONSTRUCTIONS // ΥΑΛΟΠΙΝΑΚΕΣ: THERMOGLASS // ΕΙΔΗ ΜΠΑΝΙΟΥ : PATIRIS // ΚΛΙΜΑΤΙΣΜΟΣ: DAIKIN // ΦΥΤΕΥΣΗ: GREEN MART ΑΝΤΕΜΙΣΑΡΗΣ // ΔΙΑΚΟΣΜΗΣΗ: ΘΗΤΑ THINK OF SERIFOS_ΚΕΡΑΜΕΙΟ CERAMIC STUDIO // ΔΙΑΚΟΠΤΙΚΟ ΥΛΙΚΟ: LEGRAND-BTICINO LIVINGLIGHT AIR //
